This is a drag and drop program that resembles a recycle
bin . Drag and drop is a common windows application where you can drag and drop
an object such as a file into a folder or into a recycle bin. This capability
can be easily programmed in visual basic. In this example, we create a
program that simulates the dragging of the objects into a recycle bin and
burns them. In this program, you
need to insert 6 images into the form: a recycle bin, a burning recycle bin, the
fire, and three more. In
addition, set all the dragmode of the images (including the fire) to
1(Automatic) so that dragging is enabled, and set the visible property of the
burning recycle bin to false at start-up. Besides that, label the tag of fire as
fire in its properties window. If you want to have better dragging effects, you
need to load an appropriate icon under the dragIcon properties for those images
to be dragged. Preferably the icon should be the same as the image so that when
you drag the image, it is like you are dragging the image along.
The essential event
procedure in this program is as follows:
Private Sub Image4_DragDrop(Source As
Control, X As Single, Y As Single)
Source.Visible = False
If Source.Tag = "Fire" Then
Image4.Picture = Image5.Picture
End If
End Sub
Source refers to the image
being dragged. Using the code Source.Visible=False means it will disappear after
being dragged into the recycle bin (Image4). If the source is Fire, then the
recycle will change into a burning recycle bin, which is accomplished by using
the code Image4.Picture = Image5.Picture, where Image 5 is the burning recycle
bin.
The Design Interface

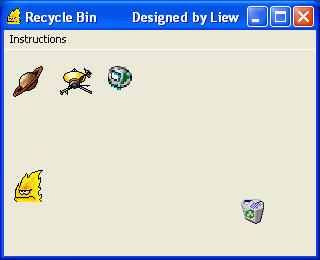

The Runtime Interface
The Code
Private Sub Form_Click()
Label1.Visible = False
End Sub
Private Sub Image4_DragDrop(Source As Control, X As Single, Y As Single)
Source.Visible = False
If Source.Tag = "Fire" Then
Image4.Picture = Image5.Picture
End If
End Sub
Private Sub instruct_Click()
Label1.Visible = True
End Sub
