Lesson 11 Math Operations


In Visual Basic 2015, we can write code to instruct the computer to perform mathematical calculations such as addition, subtraction, multiplication, division and other kinds of arithmetic operations. In order for Visual Basic 2015 to perform arithmetic calculations, we need to write code that involves the use of various arithmetic operators. Visual Basic 2015 arithmetic operators are very similar to the normal arithmetic operators, only with some slight variations. The plus and minus operators are the same while the multiplication operator uses the * symbol and the division operator use the / symbol.

The list of Visual Basic 2015 arithmetic l operators are shown in Table 11.1 below:

Table 11.1 Arithmetic Operators
Operator Mathematical Function Example
+ Addition  1+2=3
-  Subtraction  10-4=6
^  Exponential  3^2=9
*  Multiplication  5*6=30
/  Division  21/7=3
Mod  Modulus(returns the remainder of an integer division)  15 Mod 4=3
\  Integer Division(discards the decimal places)  19/4=4

Example 11.1

In this program, you insert two text boxes, four labels, and one button. In the properties windows, change the name of the button to BtnCal, the names of text boxes to TxtNum1 and TxtNum2 and change the names of labels to LblSum, LblDiff, LblPdct and LblQuo respectively. Click the button and enter the code window and type the Visual Basic 2015 code as shown below.

Private Sub BtnCal_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles BtnCal.Click
Dim num1, num2, sum, difference, product, quotient,As Single
num1 = TxtNum1.Text
num2 = TxtNum2.Text
sum=num1+num2
difference=num1-num2
product = num1 * num2
quotient=num1/num2
LblSum.Text=sum
LblDiff.Text=difference
LblPdct.Text = product
LblQuo.Text = quotient
End Sub

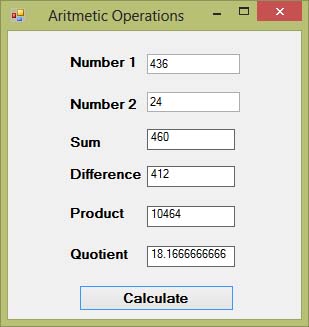

Upon running the program, the user may enter two numbers and click on the calculate button to perform the four basic arithmetic operations. The results will be displayed the on the four labels, as shown in Figure 11.1

VB2015_fig11.1
Figure 11.1

Example 11.2: Pythagoras Theorem

This program involves the use of Pythagoras Theorem to calculate the length of hypotenuse c given the length of the adjacent side a and the length of the opposite side b. In case you have forgotten the formula for the Pythagoras Theorem, it is written as c^2=a^2+b^2 in Visual Basic 2015. In this program, insert two text boxes for the user to enter the value of side a and the value of side b respectively. Add a label to display the result, which is the length of the hypotenuse. Lastly, add a button and change its name to BtnCal and it text to Calculate. Click on the Calculate button and enter the following code.

Private Sub BtnCal_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click

'To draw a triangle at runtime
Dim myPen As Pen
Dim A As New Point(10, 10)
Dim B As New Point(100, 50)
Dim C As New Point(60, 150)
Dim myPoints As Point() = {A, B, C}
myPen = New Pen(Drawing.Color.Blue, 5)
Dim myGraphics As Graphics = Me.CreateGraphics
myGraphics.DrawPolygon(myPen, myPoints)'Pythagoras equation

Dim a1, b1, c1 As Single
a1 = TxtA.Text
b1 = TxtB.Text
c1 = (a1 ^ 2 + b1 ^ 2) ^ (1 / 2)
LblC.Text = c1

End Sub

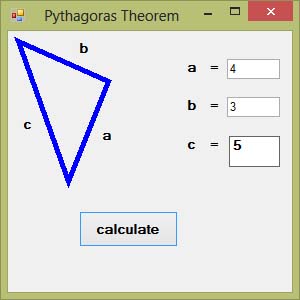

* The first part of the code is to draw a triangle at runtime. You shall learn how to write code to draw a triangle in a later lesson. The output is shown in Figure 11.2

VB2015_fig11.2
Figure 11.2

Example 11.3: BMI Calculator

A lot of people are obese now and it could affect their health seriously. Obesity has proven by the medical experts to be one of the main factors that bring many adverse medical problems, including the cardiovascular disease. If your BMI is more than 30, you are considered obese. You can refer to the following range of BMI values for your weight status.

Underweight = <18.5
Normal weight = 18.5-24.9
Overweight = 25-29.9
Obesity = BMI of 30 or greater

In order to calculate your BMI, you do not have to consult your doctor, you can simply use a calculator or a homemade computer program, this is exactly what I am showing you here. This BMI calculator is a Visual Basic 2015 program that can calculate the body mass index or BMI of a person based on the body weight in kilogram and the body height in meter. BMI can be calculated using the formula weight/( height )^2, where weight is measured in kg and height in meter. If you only know your weight and height in lb and feet, then you need to convert them to the metric system. The code is shown below:

Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArsgs) Handles Button1.ClickDim height, weight, bmi As Single

height = TextBox1.Text
weight = TextBox2.Text
bmi = (weight) / (height ^ 2)
LblBMI.Text = bmi

End Sub

The output is shown in the Figure 11.3 below. In this example, your height is 1.80m( about 5 foot 11), your weight is 75 kg( about 168Ib), and your BMI is about 23.14815. The reading suggests that you are healthy. (Note; 1 foot=0.3048, 1 lb=.45359237 kilogram)

Figure 11.3

From the above examples, you can see that writing code that involves arithmetic operations is relatively easy. Here are more arithmetic projects you work on in Visual Basic 2015:


Area of a triangle
Area of a rectangle
Area of a circle
Volume of a cylinder
Volume of a cone
Volume of a sphere
Compound interest
Future value
Mean
Variance
Sum of angles in polygons
Conversion of lb to kg
Conversion of Fahrenheit to Celsius
Conversion of mile to km
Conversion of meter to foot
